2 Tier Body Rack Specifications

Side-Load Model #AMC-SR-2S

End-Load Model #AMC-SR-2E

Includes 4 heavy-duty casters

Side-load configuration includes 8 rollers per shelf

End-load configuration includes 5 rollers per shelf

Overall footprint needed for your rack:

• 21" From the ground to 1st tier (works with most hydraulic lifts)
• 16" Between tier 1 & 2
• 28" Wide (Inside width)
• 31" Wide (Outside width) this is the overall width needed in your space
• 82" Long (Inside Length)
• 85" Long (Outside length) this is the overall length needed in your space
• 32.5" Overall height from floor to the very top of the rack

Mortuary Storage systems are built exclusively for the Healthcare, Crematory, Mortuary and Funeral home professionals. To discuss a custom rack, call our toll free number at 1-888-792-9315

Our roller rack is built on a durable, welded steel frame capable of heavy loads. We use high-quality materials, such as our 1.9" gravity-free rollers and industrial grade high impact castors. One can easily maneuver the rack and lock it in place. The roller bar rack can easily be unassembled with our Knock Down/Break Apart option model for easy storage and added convenience when having to move from one location to another. This is also useful for when the rack is needed to be located within an area not suitable for a fully erect model's access. We apply anti-corrosive powder coat finishing and offer roller rack systems in different colors and sizes.

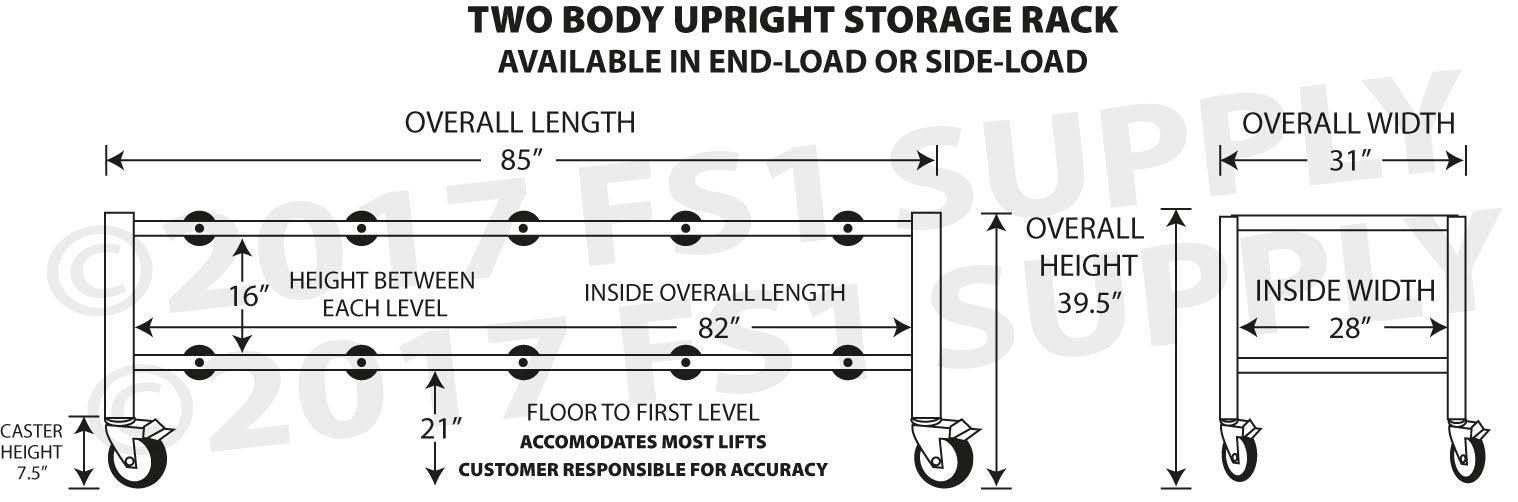

Sketch Drawing COPYRIGHT - may not be used without written permission from FS1 Co.
